Pipe Processing Line For CDC Damper Cylinder
The automated CDC damper cylinders for new energy vehicles are developed and manufactured by Zhangjiagang Heshun Manufacturer Manufacturer Co., Ltd
It is an automated system that processes industrial seamless tubes into CDC damper cylinders for electric vehicles. Through 10 precision stages,
it produces core suspension components capable of dynamically adjusting damping force, which is critical for battery safety and energy recovery efficiency.
Our Development History
2017
Zhangjiagang Heshun Manufacturer Manufacturer Co., Ltd has been committed to R&D and production of CDC damper cylinder production lines.
2018
The first semi-automatic CDC damper cylinder production line was completed.
2021
a more intelligent automated production line for CDC damper cylinders was developed.
2022
The production line stably supplied components for two BYD models: HAN (DM-p) and TAN EV.
Currently, several NEV damper suppliers have purchased this production line from Zhangjiagang Heshun Manufacturer Manufacturer Co., Ltd
This customized automotive tube bending & forming production line can not only manufacture damper middle cylinders, but also switch to producing damper outer cylinders and inner cylinders.
It features excellent versatility, significantly reduces production costs, and its superior performance has received positive market feedback.
The Production Line For CDC Damper Cylinder Partners

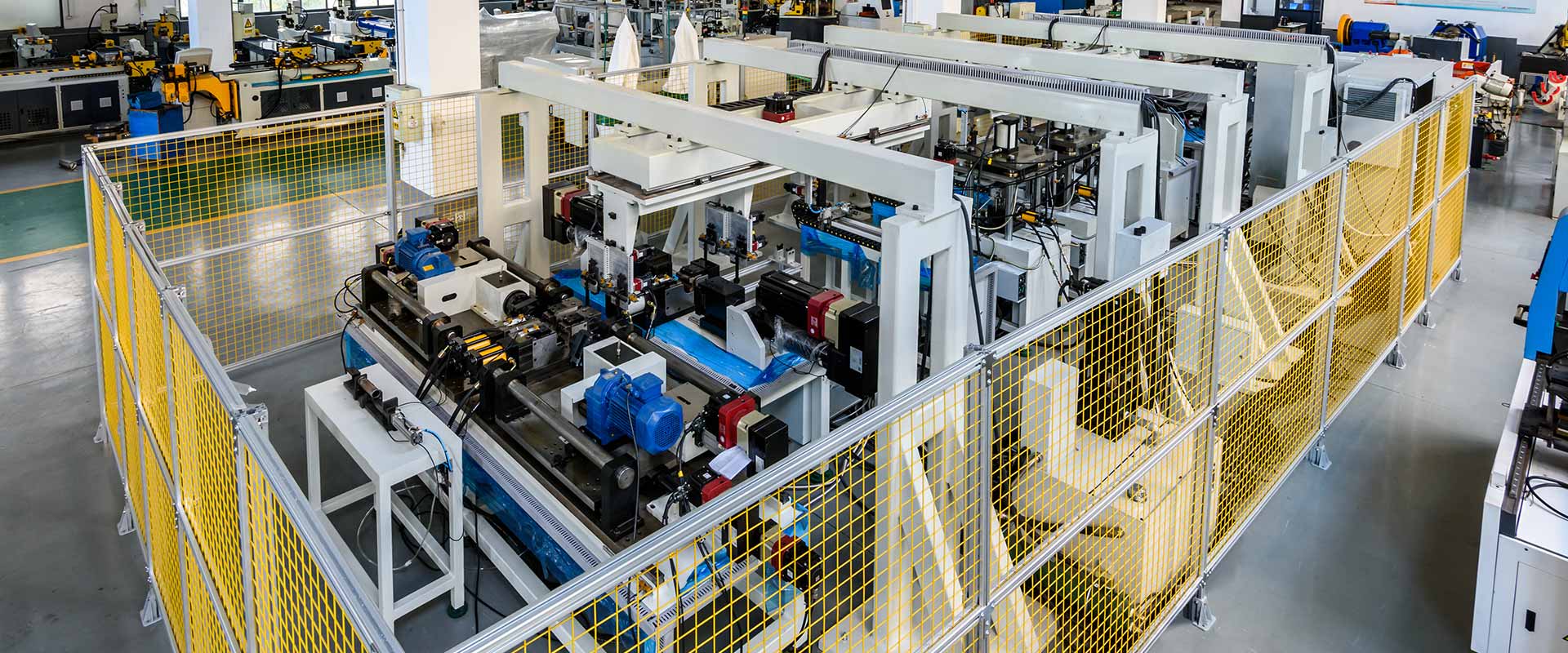

Integrated Automotive Pipe Bending & Tube End Forming Line
Integrated Pipe Processing Line Process

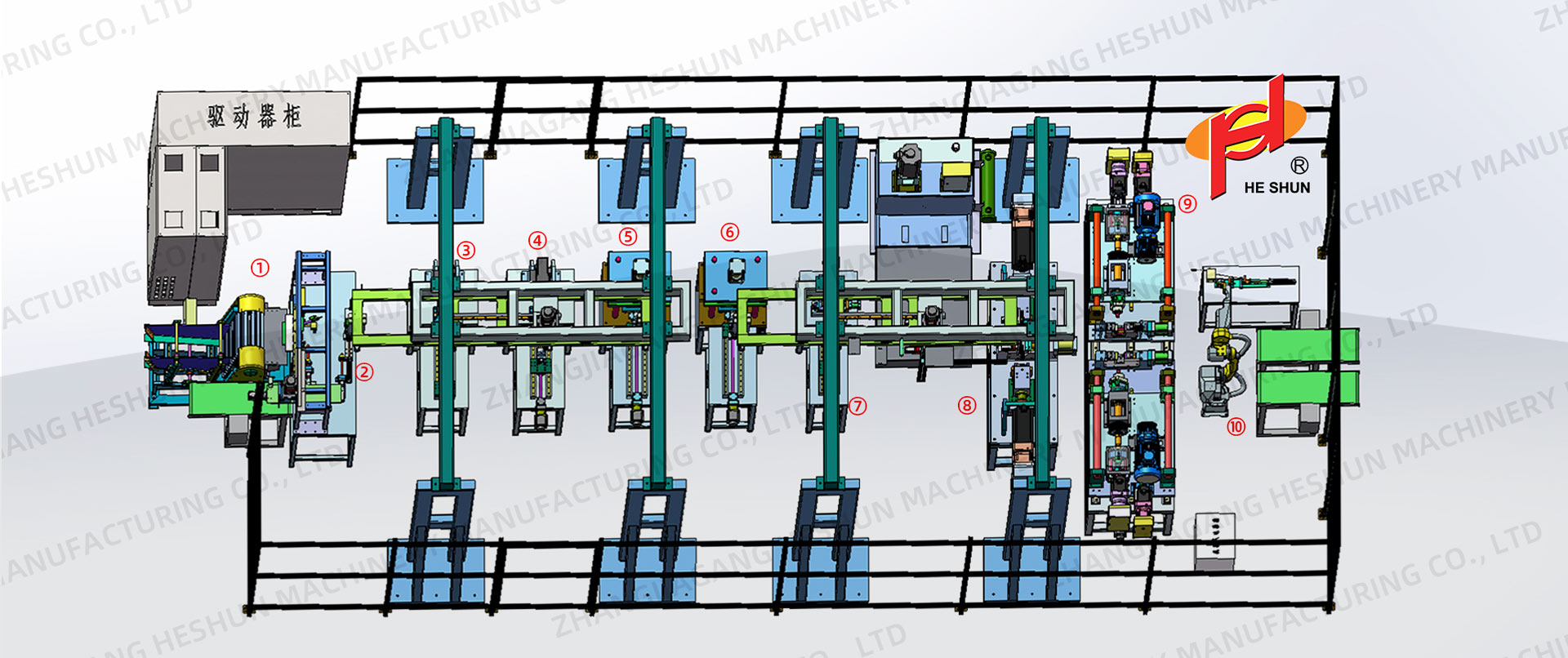

This automated production line for NEV CDC damper cylinders comprises ten stages. The process initiates with an auto-feeding system transferring raw tubes to the inspection station.
Here, weld seam inspection and diameter/length measurements are performed.
Non-conforming tubes are ejected pneumatically into the rejection zone, while qualified tubes are transported via a gantry manipulator to subsequent stations:
Drilling → Hole deburring → Drawing → Fine drawing → Drawn hole chamfering → Double swaging → Double rolling
Post double-rolling, tubes are extracted by robotic arms and conveyed to the QC station. Laser sensors verify finished product dimensions.
The robotic arm then sorts conforming/non-conforming units into designated storage areas.
Auto Feeding
Auto Hoister
Zero-contact pressure, prevents tube wall dents
Auto Inspection
Auto Dual-Inspection System
Simultaneous weld seam inspection + tube measurement
Drilling
Deep-hole Drilling
High-pressure air cooling without cutting fluid
Deburring
Dedicated Deburring Tool
Complete burr removal in 3 seconds
Drawing
High-Precision Die
Wall thickness variation <0.3%
Fine Drawing
Precision Drawing
Dimensional accuracy ±0.05mm
Chamfering
CNC Cutting Head
Automated surface finishing and chamfering
Double Swaging
Dual-End Forming
Tensile strength ↑45%
Double Rolling
Internal-External Grooving
Optimized seal ring groove design
Robotic QC
Robotic Arm Inspection
Full inspection in 20 seconds
Integrated Pipe Processing Line Features and Advantages
-
Precision Grinding:
Processing tolerance ±0.05mm, exceeding 100% of industry standards -
Zero-Contact Production:
Fully automated, 24/7 unmanned operation, saving 100% of labour costs -
Traceability System:
Laser QR code traceability, single-item full life cycle tracking, defect recall efficiency improved by 90%
-
Green Manufacturing:
Fully electric operation, no oil leaks, no environmental pollution, completely eliminating the risk of hydraulic oil leaks -
Safety Production:
Safety nets isolate production areas, reducing the incidence of workplace injuries and accident rates
We Help You To Make The Shape You Want
Whether it is carbon steel, stainless steel, aluminum alloy, copper and other materials, our pipe processing presentation can combine quality and aesthetics to meet the strict requirements of various industries.

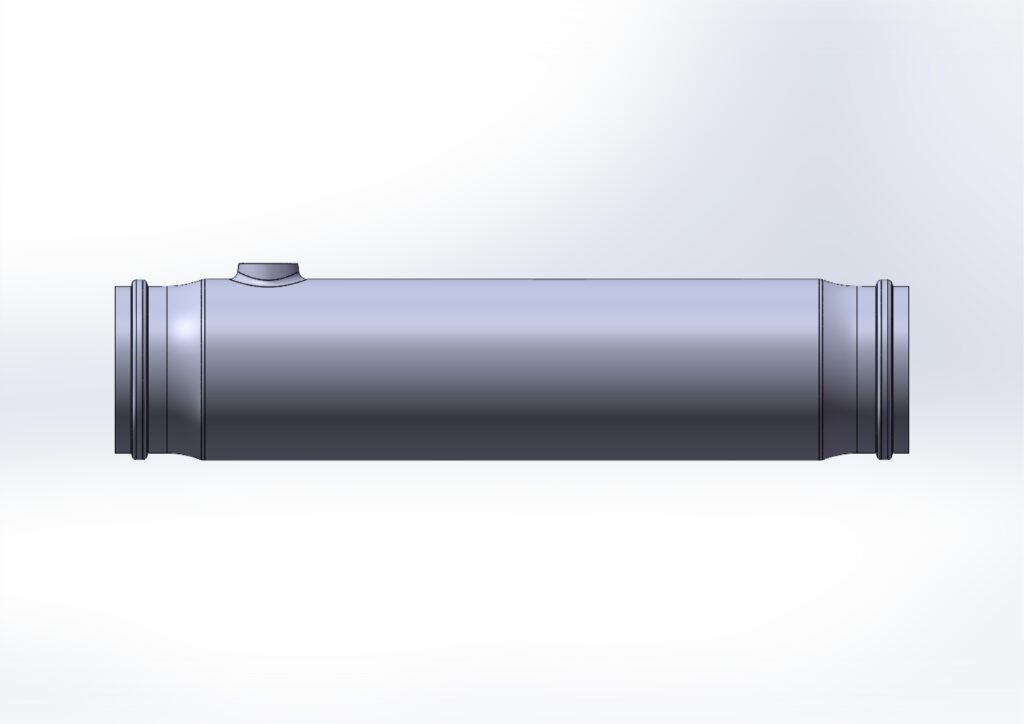

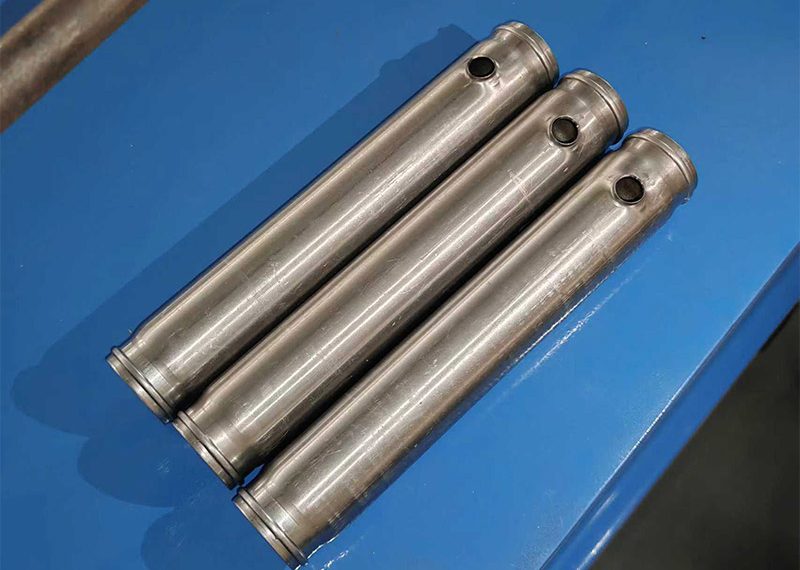

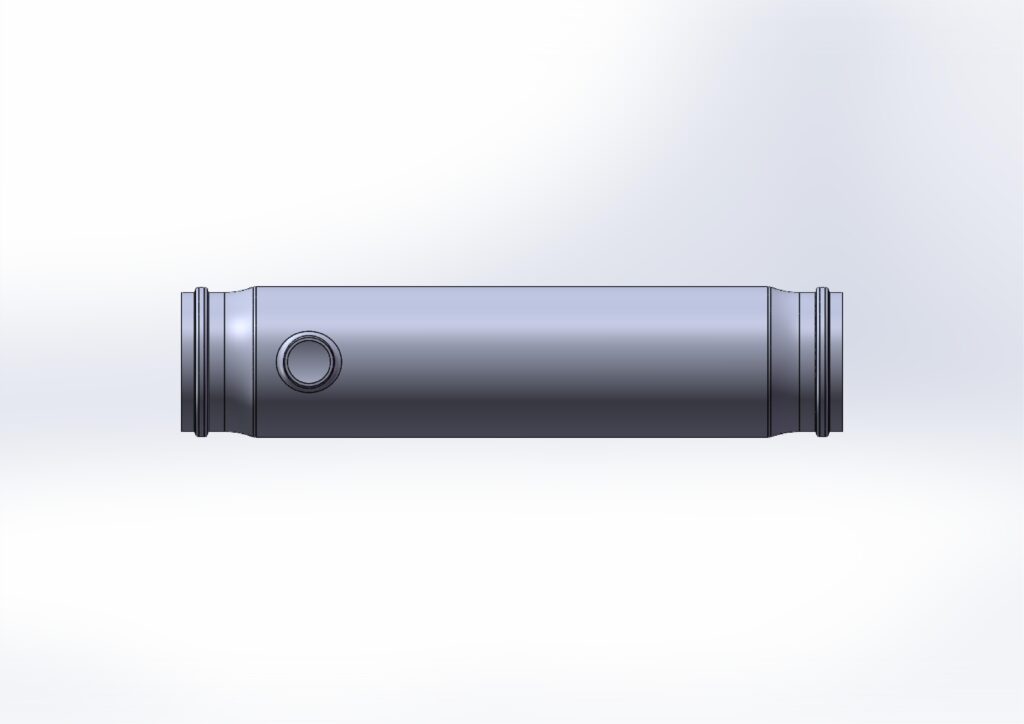

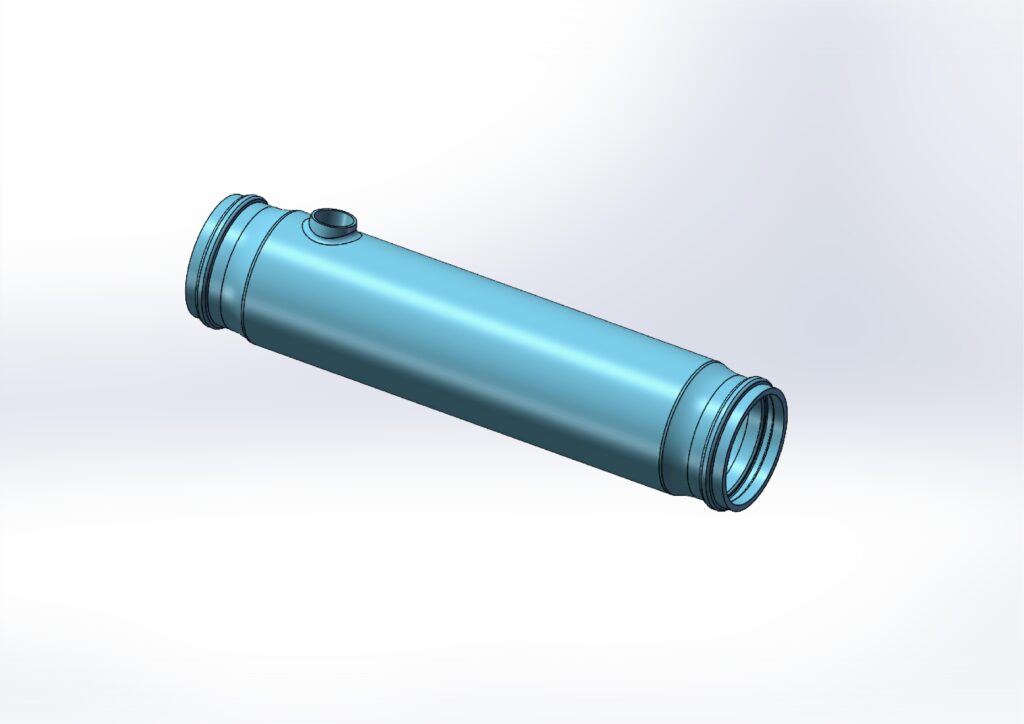

Parameters of the Inner Cylinders for CDC Damper(CDC Shock Absorbers)
Produced by This Production Line
1. Inner Cylinder Diameter: 40-45mm;
2. Inner Cylinder Wall Thickness: 2mm (nominal);
3. Extrusion Hole Diameter: 10mm, 12mm, and 16mm;
4. Extrusion Hole Height: 4mm;
5. Tolerance: ±0.05mm;
6. Note: All above specifications can be adjusted upon request/customization.
Automotive Industry Of Applications in EVs
Our automotive tube bending & end forming line is suitable for various types of new energy vehicles, including pure electric vehicles (BEVs), hybrid electric vehicles (HEVs), plug-in hybrid electric vehicles (PHEVs), extended-range electric vehicles (EREVs), fuel cell vehicles (FCVs), and more.
BEV
HEV
PHEV
EREV
FCV
Tesla Model 3
Range extension 15-22km
18% energy reduction
Toyota RAV4 HEV
Seamless ICE/e-motor transition
70% vibration reduction
BYD Han DM-p
40ms damping response
35% less pitch
Li L9
Eliminates battery resonance
40% vibration reduction
Toyota Mirai
Hydrogen-resistant coating
+5y corrosion resistance
The above are examples of our collaborations, including BYD Han (DM-p), Tesla Model 3, and Li L9 models are supplied with CDC damper cylinders produced by our fully automated CDC damper cylinder production line.
Interested in other tube-bending technologies for the automotive industry?
Here are more customized automotive solutions to complete your 3D metal tube manufacturing.
Redefining The Standard For Tube Processing
Solve your needs for precision cutting, complex pipe bending, and multi-functional molding, making production simpler and more efficient.
Full Process Automation
Full line automation reduces manual intervention and increases production efficiency by 300%.
High-precision Collaboration
Whether it is cutting accuracy, bending angle or tube end forming process, their errors are almost imperceptible.
Flexible Production
Adapt to Φ5-250mm different material pipes and support production orders in multiple industries.
Intelligent Monitoring
Real-time tracking of equipment status, energy consumption, yield rate, automatic alarm for abnormalities.
Application Areas
Automotive
Specializing in the production of automotive exhaust systems, chassis parts and other core components
HVAC
Used for precision bending of central air conditioning and ventilation system pipes
Furniture Manufacturing
Tube bending for metal furniture frames, decorative parts and other crafts
Aerospace
Ultra-high precision is used to achieve aircraft fluid management, engine piping, and the bending of fuselage structures
Hydraulics
Specializing in the production of automotive exhaust systems, chassis parts and other core components
Ship Building
Bending fuel pipes, hydraulic pipes, cooling water pipes, etc. of ships
Medical
Used to manufacture surgical instruments, vascular stents and other precision instruments
Busbars
Bend copper or aluminum busbars to make compact internal connectors of distribution cabinets
