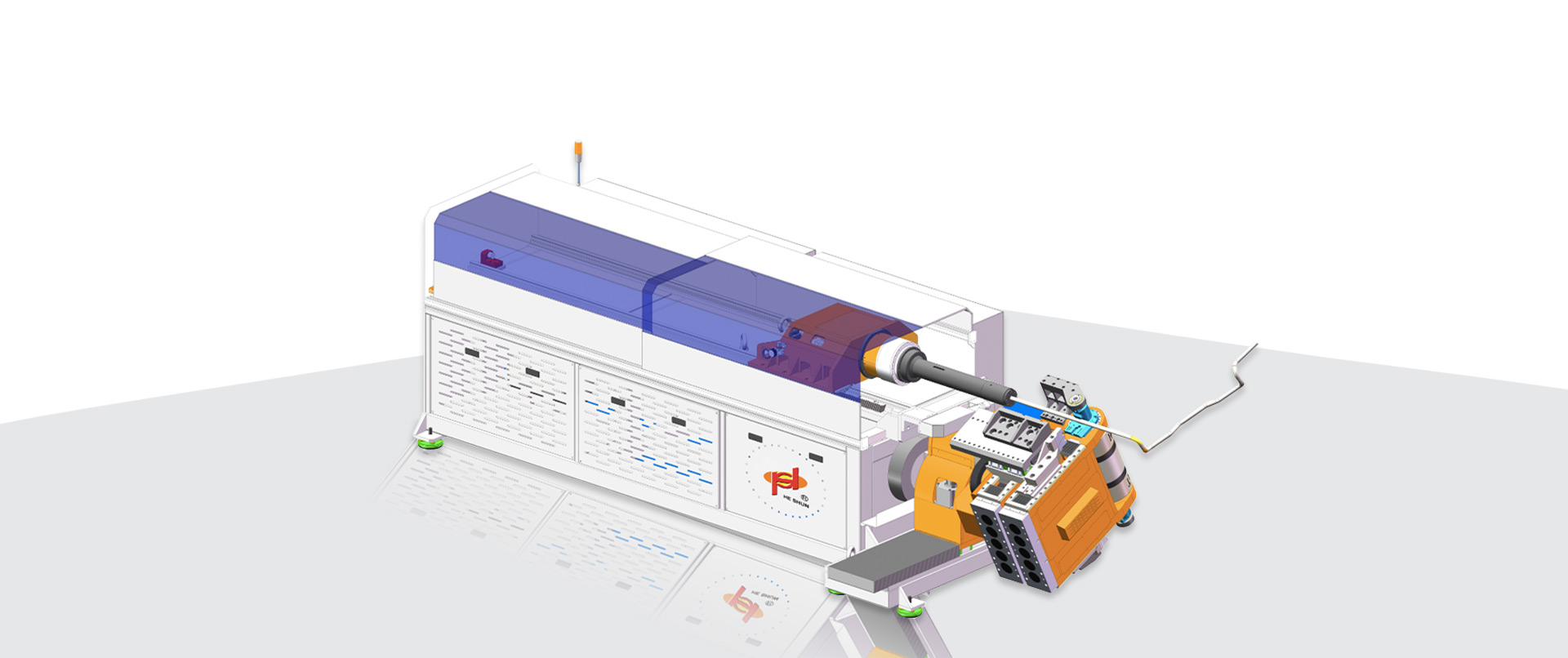

Your Trusted Full-Electric Tube Bending Machines Manufacturer
At Heshun Machinery, with high-precision, environmentally friendly, and intelligent all-electric tube bending solutions for mass production of tubing components, we wish you a pipe-bending future.
Advanced tube bending technology allows our all-electric CNC tube bending machines to bend fixed-radius and variable-radius tubes in the same cycle, easily controlling accuracy to an unrivaled ±0.1°.
Allowing multiple layers of stacked dies for continuous bending, the bending capacity ranges from 10mm to 90mm for the most demanding applications.
As a professional tube-bending manufacturer, trust us to revolutionize your tube-bending process with cleaner, quieter, and more cost-effective manufacturing.

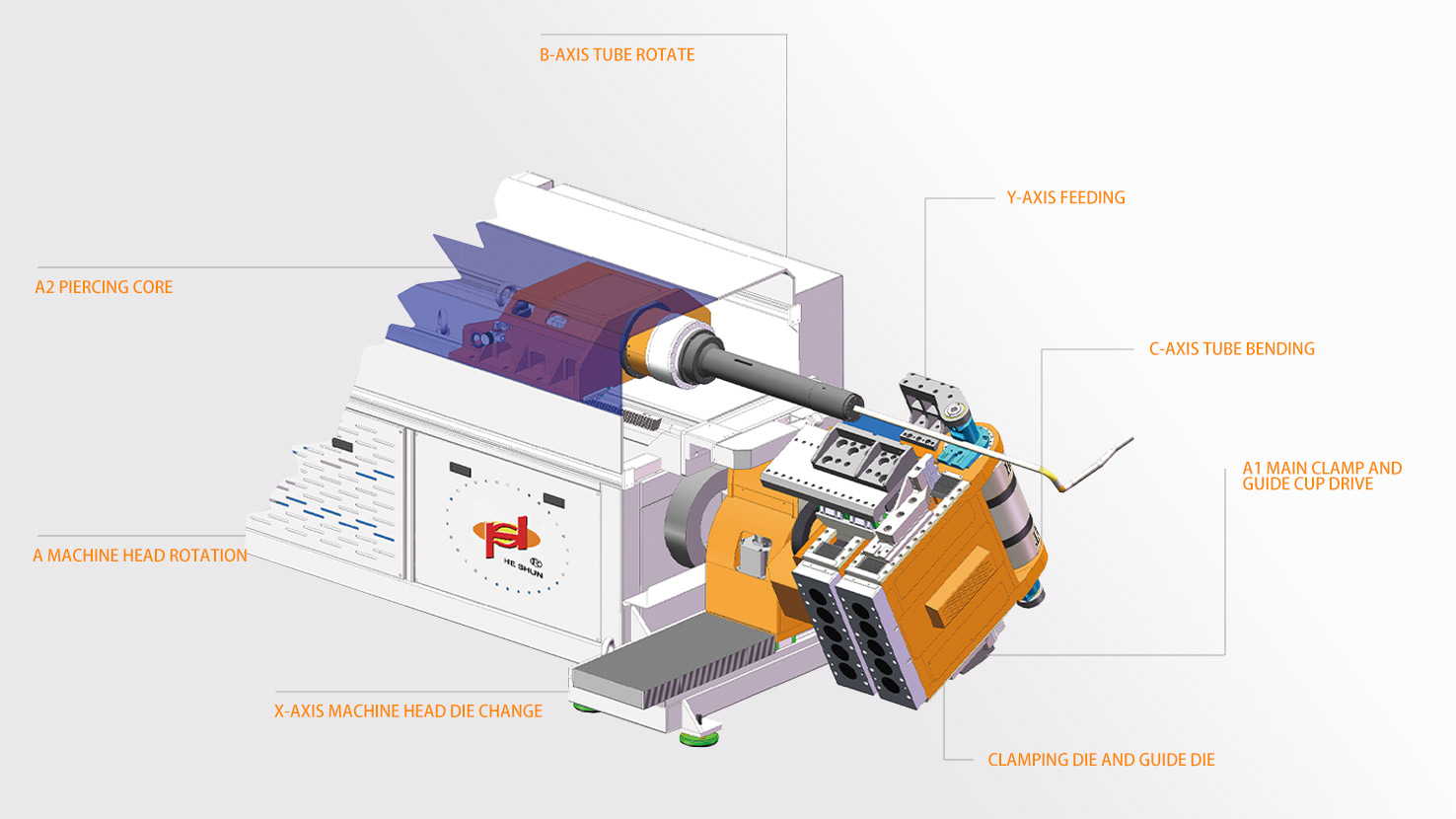

Full-Electric Tube Bending Machines Functions
A1 MAIN CLAMP AND GUIDE CLIP DRIVE
It adopts servo motor drive with high high-precision speed reducer transmission, can be programmed to set the speed and compression force. lt has the function of position memory. Simply change the set program when changing the mold.
A2 PIERCING CORE
It adopts servo motor drive with high high-precision speed reducer transmission, accurate and fast positioning. High-speed heavy-duty linear guides reduce equipment noise, the machine runs more stably.
A MACHINE HEAD ROTATION
180-degree rotation can be realized, accurate and fast positioning. High-speed heavy-duty guides, reduce equipment noise machine runs more stably.
B-AXIS TUBE ROTATE
It adopts servo motor drive with high precision speed reducer transmission, 360 degree rotationcan be realized.
C-AXIS TUBE BENDING
The bending output is designed with high precision geardrive and high precision reducer.
X-AXIS MACHINE HEAD DIE CHANGE
It adopts a servo motor drive with high precision speed reducer trans-mission, accurate and fast positioning. High-speed heavy-duty linear guides reduce equipment noise, themachine runs more stably.
Full-Electric Tube Bending Machines Features and Advantages
-
Superior Fuselage Structure
Strengthen the fuselage structure,through rigorous FEM analysis, the whole machine high steel makes the machine service life higher, the output value is higher. -
High-Precision Spindle Drive Structure
The integration of a high-performance servo motor drive with a proprietary high-precision reducer design results in a more compact machine and enhanced transmission accuracy.
-
Advanced Trolley Omnidirectional Collision Avoidance Structure
This omnidirectional protection system completely prevents barrel collisions caused by programming or operational errors. -
Innovative Clamping Structure Design
The full-gear clamping drive system enables programmable position adjustment, ensuring precise clamping control. This eliminates fixture realignment after die changes by directly invoking preset programs, significantly reducing setup time and labor.
Suppose your production requirements allow for a slightly longer cycle time, but you still need programmable control.
In that case, our CNC automatic pipe bending machines can be a more budget-friendly alternative to full-electric models.
We Help You To Make The Shape You Want
Our CNC pipe bending machine services cover almost all industries, with 20 years of rich experience in electric tube bending machines to meet your various needs.
Here are some examples of our products.
Automotive
Busbars
Furniture
HVAC
Hydraulcics
Ship Building
Fully Electric Pipe Bending Machine Parameter
High-Tech CNC Bending Machine Parts
High-precision and long-life pipe bending machine parts ensure that your equipment runs stably and efficiently, helping to maximize production efficiency.
Hydraulic Pump
Electrically driven hydraulic pump consisting of gear pump connected to AC motor.
Solenoid Valve
Precise regulation of hydraulic fluid flow, pressure and flow rate ensures fast, stable and repeatable bending action.
Servo Motor
Repeatable positioning accuracy is achieved by replacing the traditional hydraulic drive, ensuring consistency of complex bends.
Gear Reducer
With excellent transmission efficiency, longer service life, and high output torque due to the coaxial gearing.
SIEMENS Motor
The motors are built to meet the specific requirements of complex applications to maximize performance and implementation.
Linear Guide Rail
It comes with a lubrication system, which is more suitable for the micro-pitch control of the servo motor.
IPC Controller
As the heart of an intelligent control system, they enable fully electric servo bending applications with high accuracy and dynamic response.
Pneumatic Components
Rapid response to achieve clamping, feeding, positioning and other functions, helping bending and forming.
Rack and Pinion
During the bending process, the excellent servo motor combined with the gear rack can realize the precise positioning of the pipe.
Bearings
Excellent bearing components are corrosion-resistant and moisture-resistant, providing good performance.
Electric Electrical Components
Required for the pipe bending machine can be planned and constructed.
ALL-ELECTRIC TECHNOLOGY
Simple, precise, efficient
Fully Electric Drive
Highly responsive servo motors for 30% to 50% faster production speeds.
High Precision & Repeatability
Meet ±0.1° bending angle accuracy, forming multiple tube bends in one go.
Energy Saving
Saving 20-30% of energy consumption, responding to the trend of green manufacturing.
Application Areas
Automotive
Specializing in the production of automotive exhaust systems, chassis parts and other core components
HVAC
Used for precision bending of central air conditioning and ventilation system pipes
Furniture Manufacturing
Tube bending for metal furniture frames, decorative parts and other crafts
Aerospace
Ultra-high precision is used to achieve aircraft fluid management, engine piping, and the bending of fuselage structures
Hydraulics
Specializing in the production of automotive exhaust systems, chassis parts and other core components
Ship Building
Bending fuel pipes, hydraulic pipes, cooling water pipes, etc. of ships
Medical
Used to manufacture surgical instruments, vascular stents and other precision instruments
Busbars
Bend copper or aluminum busbars to make compact internal connectors of distribution cabinets
Our Advantages
25Year
Industry Experience
4
Main Products
30+
Multiple Patent Approvals
30+
Professiona R&D Team
60+
Sold In Over 60 Countries
Faq
We have sorted out some frequently raised questions by users, hoping to help you find the answers quickly.
1. Determine whether you want to bend a circle, arc, U-shape or angle.
2. Determine the outer diameter and wall thickness of the pipe.
3. Determine the bending diameter again.
4. Determine the appropriate model.
5. Determine the machine price and mold price.
2. Determine the outer diameter and wall thickness of the pipe.
3. Determine the bending diameter again.
4. Determine the appropriate model.
5. Determine the machine price and mold price.
Yes, we make samples using superior cutting, bending and tube end forming techniques. Please mail us all original tubing in the correct sizes and we will fulfill your expectations!
Yes, our pipe bending machines all support logo printing, creating sophisticated equipment belonging to your brand.
Yes, our factory is very close to Shanghai, only one hour by car. Please contact us in advance by email: heshunchenyi@163.com, our sales representative will communicate with you further to confirm the best arrival time.
Don’t worry, we provide a full set of English manuals to help you with production and processing. According to your requirements, we can also provide equipment installation and employee training to further help you achieve production efficiency.
